Schacht’s maple high castle Standard Floor Loom is available in 36″ and 45″ weaving widths. Choose 8 shafts or the 4 Now-4 later model to add more shafts at any time.
Both looms function in the same way. The high castle includes a storage tray; you will also appreciate holes drilled in the top of the castle uprights for an extension lamp.
All Standard Floor Looms may be ordered with 8 or 4 Now-4 Later* shafts. The number of shafts you choose will depend on the kind of weaving you intend to do. If you have a keen interest in pattern drafting and weave structures, 8 shafts will allow you to fully develop this interest.
The Standard Floor Loom has an underslung jack mechanism to raise the shafts. The jacks pivot from two points equidistant from the center and lift the shafts by pushing up on the center point. Schacht employs a parallel lamm system that gives these looms a light treadling action without any adjustment of tie-up cords.
Schacht tie-up system is quick and easy to use. Pre-measured nylon tie-up cords hang from the lamms and are attached to a treadle by sliding the appropriate cords into the treadle slot. This makes changing tie-ups very fast.

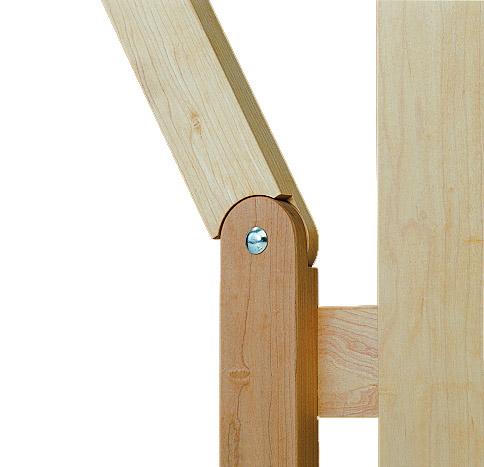

Other special features of this Standard Floor Looms include friction-reducing aluminum shaft channels, a back beam that folds with or without a warp on the loom, removable back and breast beams, and an adjustable open-sided beater. The braking system employs a ratchet and dog on the cloth beam and a friction brake on the warp beam—this combination always gives you precise tension control.
*The 4 Now-4 Later model is an 8-shaft loom shipped with 4 shafts installed and the space to add an additional 4 shafts. You can purchase a kit to add 4 shafts at a later time.
These looms are shipped with all the heddles, tie-ups, and other items normally included with an 8-shaft loom.
Usually send in 4 to 8 weeks
Delivery charges apply on this loom. Contact us for a quote based on your location.
