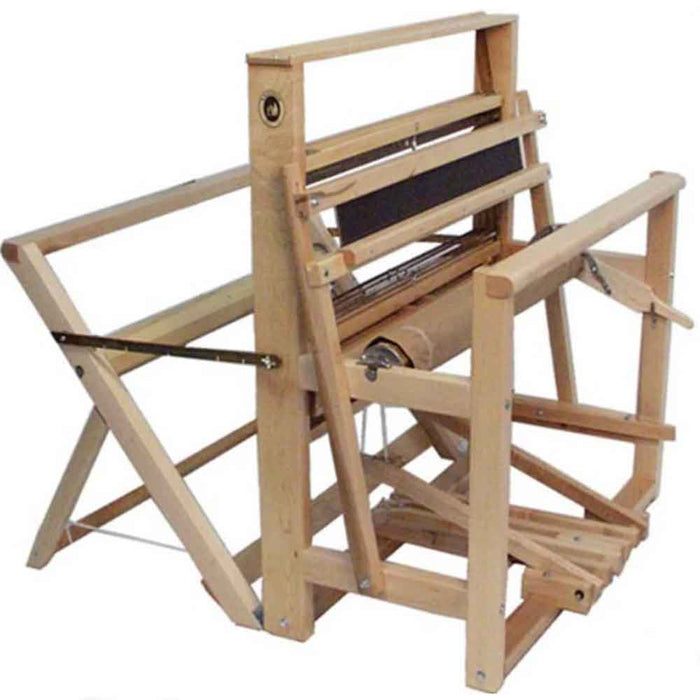

Leclerc Nilus II 4-shaft jack-type floor loom, sturdy and foldable to 27.5 inches, available in 36, 45, 60 and 72 inch weaving widths

Leclerc Nilus II – 4-Shaft Jack-Type Floor Loom

by Leclerc
$3,713.00 - $4,483.00
$3,713.00
$3,713.00 - $4,483.00
$3,713.00

A sturdy, stable, and efficient loom

The Leclerc Nilus II 4-shaft is a jack-type floor loom designed to deliver strength, stability, and weaving comfort. Built with durability in mind, it is ideal for both professional weaving studios and passionate home weavers.

Thanks to its design, the Nilus II provides a perfect shed every time, regardless of tie-up, ensuring smooth and reliable weaving for any type of fabric.

Despite its power, this loom is compact: it folds to only 27½" (70 cm) deep, even with a warp in place, and its anti-tipping support leg provides excellent stability. It can also easily pass through a standard doorway, making it a practical choice for limited spaces.

Key Features of the Nilus II – 4 shafts

  • Available weaving widths: 36" (90 cm), 45" (115 cm), 60" (150 cm), 72" (183 cm)
  • Jack-type mechanism → each shaft operates independently
  • Perfect shed regardless of tie-up
  • Compact and foldable → only 27½" deep when folded
  • Anti-tipping leg for improved stability
  • Friction brake for consistent warp tension
  • Removable breast beam and back beam → easier warping and threading
  • Can be equipped with a fly shuttle beater for higher production

Standard Equipment

  • 1 stainless steel reed, 12 dents/inch
  • Inserted-eye heddles (12½" / 31.7 cm) → 1000 to 2000 depending on model
  • 1 boat shuttle (11¾")
  • 12 plastic bobbins
  • 1 reed & heddle hook
  • 2 lease sticks
  • 4 steel rods
  • 2 cords and 2 aprons
  • Assembly instructions
  • Book Warp and Weave

Specifications (depending on model)

  • Weaving widths: 36", 45", 60", 72"
  • Depth open: 28½"–31¼" (70–79 cm)
  • Depth folded: 27½" (70 cm)
  • Overall width: 117–210 cm (46"–83")
  • Total height: 149–170 cm (58½"–67")
  • Front height: 93–118 cm (36½"–46½")
  • Number of heddles: 1000–2000 depending on size
  • Net weight: 70–85 kg (155–188 lbs)

Optional Accessories

  • Fly shuttle beater
  • Conversion kit 4 → 8 shafts with back-hinge treadles
  • Sectional warp beam (1" or 2" sections)
  • Double warp beam
  • Adjustable bench or open-end bench
  • Texsolv heddles or inserted-eye heddles
  • Leclerc weaving accessories (bobbin winder, shuttles, bobbins, etc.)

⚠️ Special Order – Final Sale

The Nilus II is available by special order only.
Because of the nature of this order, no returns or exchanges will be accepted.

Why Choose the Nilus II – 4 shafts?

  • A robust and durable loom, perfect for large weaving projects
  • Perfect shed guaranteed for smooth weaving
  • Compact and foldable to 27½" for easy storage and transport
  • Adaptable with multiple accessories and upgrade options
  • Proudly made in Québec, Canada, by Leclerc — a trusted name in weaving

👉 The Nilus II 4-shaft is the ideal loom for weavers who need a stable, reliable, and space-saving floor loom for both home and studio use.
