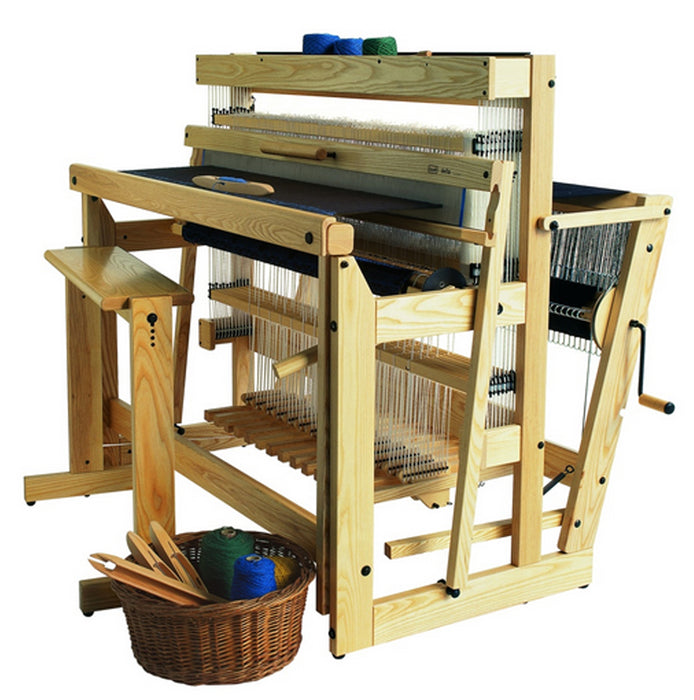

Louët Delta countermarch floor loom with 12 shafts, in lacquered ash wood, shown with matching bench and basket of yarns

Louët Delta Countermarch Loom – 8 or 12 Shafts, 110 or 130 cm

by Louët
$9,165.95 - $11,421.86
$9,165.95
$9,165.95 - $11,421.86
$9,165.95

The Louët Delta is a modern parallel countermarch floor loom, designed for performance, durability, and exceptional comfort. Based on the legacy of the Hollandia and inspired by the popular Spring loom, the Delta is built by weavers, for weavers.

Its floating breast beam ensures warp tension is consistent and easy to reset after advancing the cloth. The rear-hinged treadles, combined with a parallel lam system, provide light and even treadling across the full width. Each treadle lifts a single shaft, making tie-ups straightforward and logical.

The adjustable shaft height allows for slack during threading and precision tensioning during weaving. The friction brake system is robust and user-friendly, and a convenient front cloth advance system makes weaving even more efficient.

Crafted from lacquered ash wood, the Delta is a long-lasting, high-performance loom for ambitious weavers.

Key Features

  • Floating breast beam for constant warp tension
  • Parallel countermarch system with light, even treadling
  • Generous shed comparable to the Spring
  • Integrated beater rack and top shelf
  • Friction brake system
  • Adjustable shafts for easy threading and fine control
  • Available in two weaving widths and two shaft counts

Available Versions

  • Delta 110 – 8 shafts – 110 cm (43 ½") weaving width
  • Delta 110 – 12 shafts – 110 cm (43 ½") weaving width
  • Delta 130 – 8 shafts – 130 cm (51") weaving width
  • Delta 130 – 12 shafts – 130 cm (51") weaving width

Included with the Loom

  • Built-in beater with rack
  • Top shelf
  • Stainless steel reed 40-10 (10 dpi)
  • Texsolv heddles:

  • 1200 heddles (110 cm model)

  • 1400 heddles (130 cm model)

  • Lease sticks
  • 16 warping sticks

Dimensions & Weight

  • Delta 110: 140 × 100 × 128 cm – 88 kg
  • (55 × 39 ⅜ × 50 ⅜ in – 194 lb)
  • Delta 130: 160 × 100 × 128 cm – 93 kg
  • (63 × 39 ⅜ × 50 ⅜ in – 205 lb)

Optional Accessories

  • 4-shaft extension
  • Extra pair of treadles
  • Adjustable bench (59–72 cm / 23 ¼ – 28 ⅜ in)
  • Second warp beam
  • Sectional warp beam
  • Flying Dutchman shuttle
  • Flying shuttle device

This loom ships directly from Louët in the Netherlands. Contact us for current lead times – typically fast.
